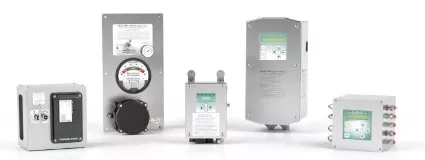

pf purga.jpg

Categories: Solution for explosive atmospheres, Solutions for explosive areas

Purge and presurization systems

Bebco EPS® purge and pressurization solutions from Pepperl+Fuchs have a name for themselves in the process automation industry. As the leader in purging technology, we make innovative solutions that are very simple to use and easily adaptable to almost any application. With a Bebco EPS purge and pressurization system from Pepperl+Fuchs you will benefit from the following advantages:

  • Innovative solutions backed by more than 20 years of experience; a family of automatic purge and pressurization systems that facilitate the protection of equipment used in hazardous locations
  • Technical support anywhere in the world
  • Pressurization and purge systems designed according to ATEX directive 94/9/EG, NFPA 496 and ISA 12.4 standards
  • Easy integration – compact, low-profile designs for interior or exterior mounting
  • Automatic temperature and leak control and alarm function
  • Programmable user interface to meet the demands of most users

Pepperl+Fuchs offers a complete range of pressurization and purging equipment suitable for your application needs.

Another advantage of pressurization and bleed solutions is the use of the standard type 4/12 casing as the protected casing. This will save money, space and weight compared to explosion proof methods. Do you need a certified solution? The Pepperl+Fuchs Systems & Solutions Group also offers you custom-designed certified housing solutions.

Type X purge system

Tipo X
Pepperl+Fuchs' Bebco EPS Type X purge system reduces the classification of protected enclosures from Division 1 to non-hazardous areas, so generic equipment can be used within these enclosures. The Pepperl+Fuchs Type X Purge System is fully automatic and performs essential functions of purging, pressurizing and monitoring the protected casing. Its design is compatible with NFPA 496 and ISA 12.4 standards. . The Series 6000 Type X Purge System is indicated for applications in Class I, Division 1 non-hazardous areas or Class II, Division 1 non-hazardous applications.

Y type purge system
Tipo Y

The Pepperl+Fuchs Bebco EPS Type Y Purge System reduces the classification of the protected enclosure from Division 1 to Division 2. Equipment used within the enclosure must be classified according to Division 2. The Type Y Purge System :
  • Allows Division 2 rated equipment to be used in Division 1 locations
  • Controls purging, pressurization and monitoring of pressures
  • It is indicated for applications in the areas of class I/II, from division 1 to 2
  • Purge shell sizes up to 12.7 m3
  • UL, cUL, FM Ratings
  • Compliant with NFPA 496 and ISA 12.4 standards
The Pepperl+Fuchs Series 3000 YBebco EPS Purge System purges and pressurizes the protected casing and maintains pressure inside the casing.
The Series 1000 Y-Type Purge System is intended for use in Class I, Division 1 through 2 or Class II, Division 1 through 2 applications.
Also included is a wide range of accessories and vents for the Y-Type |

Z Type Purge Systems
Tipo Z


Pepperl+Fuchs' Bebco EPS Type Z purging system reduces the classification of protected enclosures from Division 2 to non-hazardous areas, so generic equipment can be used within these enclosures. Bebco EPS type Z / Ex pz purge and pressurization systems from Pepperl+Fuchs facilitate the selection, installation and use of enclosures located in Division 2 / Zone 2 hazardous areas. Type Z / Ex pz solutions consist of a control unit, ventilation and solenoid valves. The combination of configurable and automated features supports even the most difficult applications.

  • Automatic systems for alarm, purge and feeding of the carcass
  • Shell sizes up to 12.7 m3
  • Compliant with NFPA 496 and ISA 12.4 standards
  • ATEX, IECEx and UL certified systems
  • Integrated programming (programmable temperature control / leakage compensation)

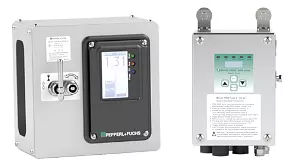

The new 7500 Series Z Type Pressurization and Purging System is Pepperl+Fuchs' most innovative solution for facilitating the selection, installation and use of enclosures located in Division 2 / Zone 2/22 hazardous areas.
The 5500 Series Z-Type Pressurization and Purge System is the solution for installation and use of enclosures located in Division 2 / Zone 2 hazardous areas.
Our Series 3000 Z-Type Purge System is responsible for purging and pressurizing the protected casing and maintaining pressure inside the casing. It is indicated for applications in Class I, Division 2 non-hazardous areas and Zone 2 non-hazardous areas.
The Series 1000 Type Z Purge System is indicated for applications in Class I, Division 2 Non-Hazardous Areas and applications in Class II, Division 2 Non-Hazardous Areas.

Ex pxb purge systems
Ex pxb

The Pepperl+Fuchs Bebco EPS Ex pxb purge system reduces the classification of protected enclosures from zone 1/zone 21 to non-hazardous areas, so generic equipment can be used within these enclosures.

Our Ex pxb purge system is designed in accordance with European requirements: ATEX directive 94/9/EG, EN60079-2 and EN61241-4. European protection methods allow various techniques to be used in the design of equipment for hazardous areasEx px series 6500 pressurization and purging system offers reliable protection for general purpose electrical equipment operating in Zone 1/21 hazardous areas.The 6000 series consists of in a Type X Ex px Rapid Exchange® purge system. The purge system reduces the classification inside the protected enclosure from Zone 1/Zone 21 to a non-hazardous area. The 6100 system is added for large frames, motors, compressors, and large equipment.

Ex pyb purge systems
PYB

Pepperl+Fuchs' Bebco EPS Ex pyb purge system reduces the classification of protected enclosures from zone 1/zone 21 to non-hazardous areas, so generic equipment can be used within these enclosures.

Our Ex pyb purge system is designed in accordance with European requirements: ATEX directive 2014/34/EU, EN60079-2 and EN61241-4. European protection methods allow various techniques to be used in the design of equipment for hazardous areasThe Ex pyb 6500 series purge and pressurization system offers reliable protection for general purpose electrical equipment operating in Zone 1/21 hazardous areas.

Ex pzc purge systems
pzc

Ex pz purge systems reduce the classification of protected enclosures from zone 2 to non-hazardous areas, so generic equipment can be used within these enclosures. Bebco EPS Ex pz purge and pressurization systems from Pepperl+Fuchs facilitate the selection, installation and use of enclosures located in zone 2 and 22 hazardous areas. Ex pz solutions consist of a control unit, ventilation and solenoid valves. The combination of configurable and automated features supports even the most difficult applications.

  •  Automatic systems for alarm, purge and feeding of the carcass
  • Casing sizes up to 12.7 m3.
  • Compliant with NFPA 496 and ISA 12.4 standards
  • ATEX, IECEx and UL certified systems
  • Integrated programming (programmable temperature control / leakage compensation)

The new 7500 system is universally powered and certified worldwide for Zone 2/22 and Division 2 hazardous areas. The Ex pz series 5500 purge and pressurization system is Pepperl+Fuchs' most innovative solution for easy selection, installation and use of enclosures located in zone 2 and zone 22 hazardous areas. The Ex pz series 5000Q purge and pressurization system allows generic equipment to be mounted in an enclosure for safe operation in zone 2 and zone 22 hazardous areas .

Enviro-Line Pressurization Systems

Enviro line

Enviro-Line Purge Units are an enclosure pressurization system for use in non-hazardous areas and the principle of operation is based on the supply of compressed instrument air or inert gas. They are responsible for regulating and monitoring the pressure inside the sealed casing to prevent the accumulation of caustic and harmful gases and dust. Enviro-Line purge units are casing pressurization systems for non-hazardous areas and whose operating principle is based on in the supply of compressed instrument air or inert gas. They are responsible for regulating and monitoring the pressure inside the sealed casing with a constant pressure value to prevent the accumulation of caustic and harmful gases and dust.

Removing these dusts and gases extends the life of expensive electrical equipment and instruments that are installed in the Enviro-Line purging unit.

The higher pressures inside the electrical enclosure insulate from corrosive environments that remain on the outside. The system maintains a constant 0.5" water pressure inside the casing to protect from the effects of gas or dust.
