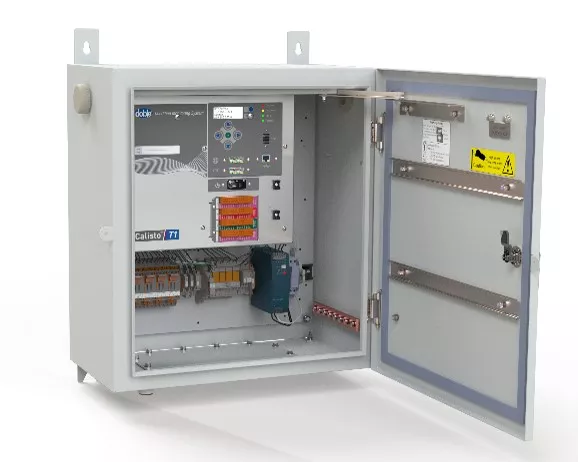

Calisto T1 - All in one Transformer monitor

Its modular design allows users to adapt to their needs

The new Calisto T1 is the renewal of the transformer condition monitors of Doble Engineering that integrates in a single equipment the known Double IDD, Double PD Guard, Double I/O and Analytics in a single unit of modular design that allows users to add or remove modules to achieve the solution that suits their needs. The Calisto T1 allows users to measure the state of insulators by continuous monitoring of real power factor or leakage current, measure partial discharges in bushings, tank or neutral with up to eight channels, optional input cards outputs that allow monitoring and control signals in the environment. Standard communication ports include Modbus and DNP3 offering IEC 61850 as an option. This allows connectivity with RTUs, SCADA Systems, Historians, etc.

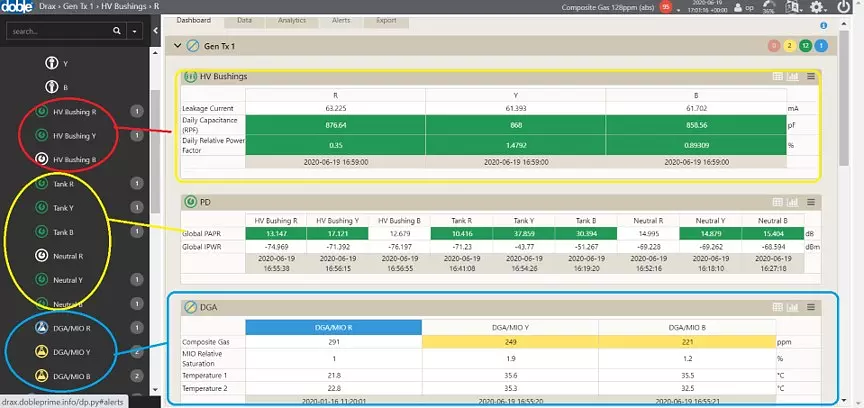

User interfase
It also offers a powerful navigator for viewing data not only from Calisto T1 itself but also from other equipment communicated to it such as dielectric oil dissolved gas continuous monitors, hot spot temperature monitors or others. We invite you to register to request additional information and access our technical articles and newsletters
